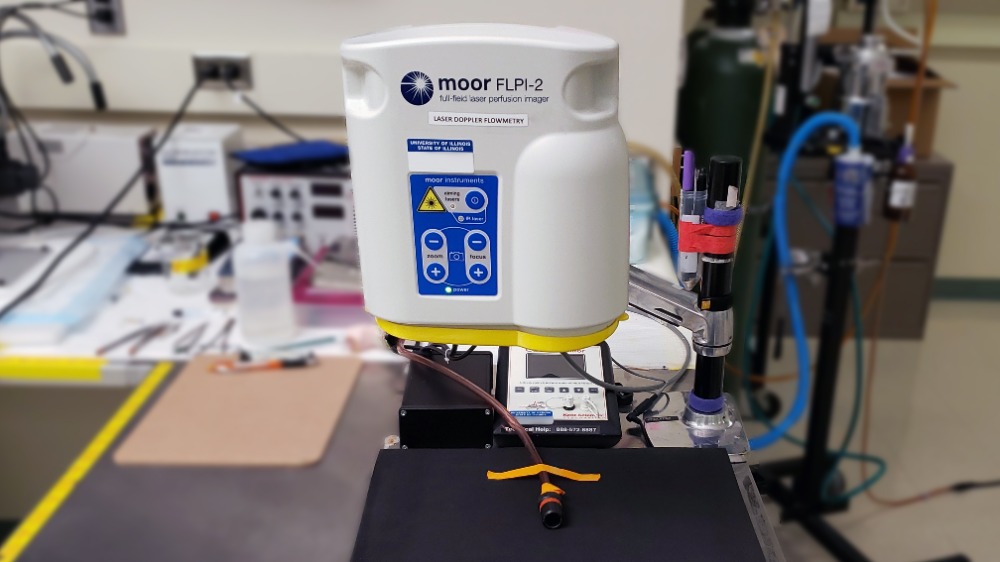

About the blood flow imager

The imager's features include:

• Optical zoom, which means you can assess small areas right up to a full-size adult hand with a single imager.
• Ability to image any exposed tissue (skin or surgically exposed tissues) and species.
• Easy-to-use, single USB connection with flexible and simple setup helps get you up and running quickly.
• Three measurement modes with flexible sampling rates (spatial, temporal and sliding window algorithms) to optimize your data for frame rate, spatial resolution, and file size.
• The best spatial resolution of 3.9 microns per pixel (6.6Mpixels/cm2).
• Real-time video frames rates – up to 100 frames per second at the full field (no windowing).
• Image areas range from 6mm x 8mm to 225mm x 300mm with a unique, motorized 10x optical zoom and autofocus.
• Color photo and blood flow images are provided by a unique single USB3 camera, RGB illumination system. Blood flow and photo images precisely matched.
• Compact design with flexible stand options for laboratory or clinical use.
• Unique protocol control – automation of pressure cuff, tissue heating and iontophoresis protocols with automated reporting, eases workflow and improves accuracy.
• CE marking that's well-established in the clinical and research communities for best performance and quality. Laser stability hardware for the ultimate in reliable and consistent measurement over minutes, hours and days.
